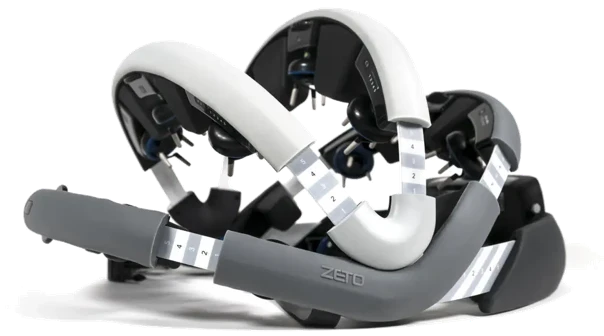

Zeto

Specifications

m-pod for Zeto

Compatible Models

m-pod works seamlessly with most Zeto EEG models, delivering 8 bits of data and providing a true plug-and-play integration.

Using m-pod With a Response Pad

m-pod is not a standalone product. It is used with StimTracker, Riponda (or earlier RB-x40 Series) response pads, or Lumina.

Here is how m-pod connects when combined with a Riponda response pad:

The response pad draws its power from your computer via USB. When a key is pressed, information is sent at the same time via USB to the computer and via m-pod to Zeto.

The combination allows four different types of signals to be delivered:

  • Key press and release
  • Onset of a visual stimulus using a light sensor
  • Onset of a vocal response using any PC-compatible microphone
  • Event codes or markers sent via USB

This provides an excellent value if these are all the signals that you need.

When to Use m-pod With StimTracker Instead

StimTracker offers more options than the combination of response pad + m-pod described above:

  • Mark onset of auditory stimuli
  • Use more than one light sensor
  • Multiple outputs, e.g. one output to Zeto and one to an eye tracker, guaranteeing that your data in Zeto and in the eye tracker are on the same timebase

Additionally, with the StimTracker Quad model, you can:

  • Mark onset of a participant’s vocal response using a mic
  • Accept direct TTL and switch inputs; this is handy for custom applications such as foot pedals or accepting input from other devices
  • Have a direct TTL output connector, very useful when outputting to a recorder for which Cedrus does not have a ready-made m-pod model

Using m-pod with StimTracker is described on this page

Event Markers

Events markers are collected in Zeto’s software.

Another Solution

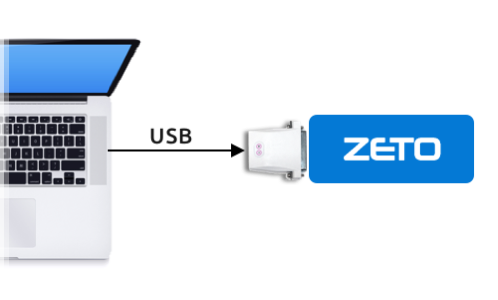

Use c-pod to send event markers via USB.

What To Do Next

WE CAN ASSIST YOU…

…in selecting the best solution or discussing any special requirements that your lab might have. Email us.

How to Order Response Pad + m-pod Combo

To order StimTracker instead, see this page. You can also order from one of Cedrus’ international distributors.

• 30 day money back guarantee
• 1 year warranty
• Free support
• Contact us for questions
