StimTracker and ANT Neuro

How It All Connects

Here is a typical connection diagram for a StimTracker Duo:

On the input side, the diagram shows StimTracker Duo detecting the onset of visual stimuli using light sensors, the onset of auditory stimuli, and event markers sent via USB. On the output, event markers are sent to ANT Neuro via an m‑pod. A second m‑pod can be added, e.g. for an eye tracker, ensuring that all your biometric data are synchronized.

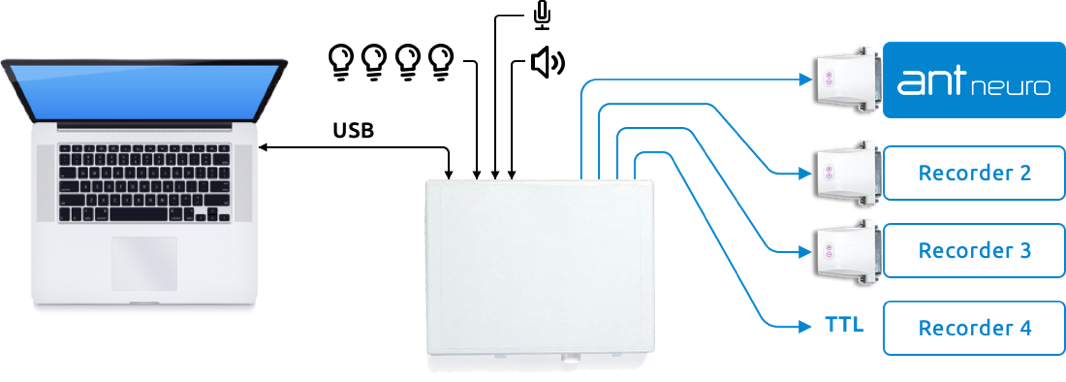

StimTracker Quad offers additional features:

The Quad model can detect the onset of a vocal response using any PC-compatible microphone and can handle more light sensors. It also supports an additional m‑pod output and provides raw TTL input and output.
