StimTracker and Brain Products

Compatible Brain Products Models

StimTracker works seamlessly with nearly all Brain Products EEG equipment, providing a true plug-and-play integration with actiCHamp, BrainAmp Standard, BrainAmp DC, BrainAmp ExG (stand-alone version), BrainAmp MR, BrainAmp MR plus, and BrainAmp ExG MR (stand-alone version).

actiCHamp

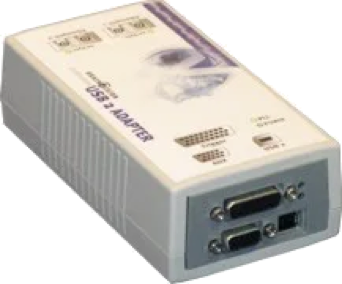

USB 2 Adapter

How It All Connects

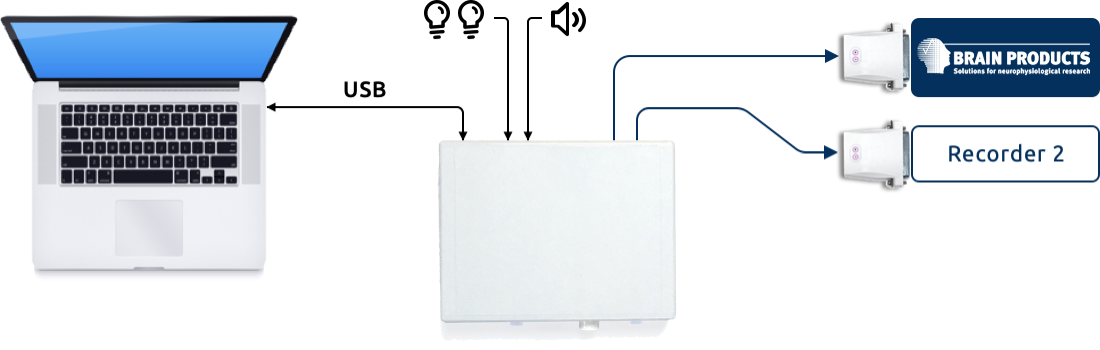

Here is a typical connection diagram for a StimTracker Duo:

On the input side, the diagram shows StimTracker Duo detecting the onset of visual stimuli using light sensors, the onset of auditory stimuli, and event markers sent via USB. On the output, event markers are sent to Brain Products via an m‑pod. A second m‑pod can be added, e.g. for an eye tracker, ensuring that all your biometric data are synchronized.

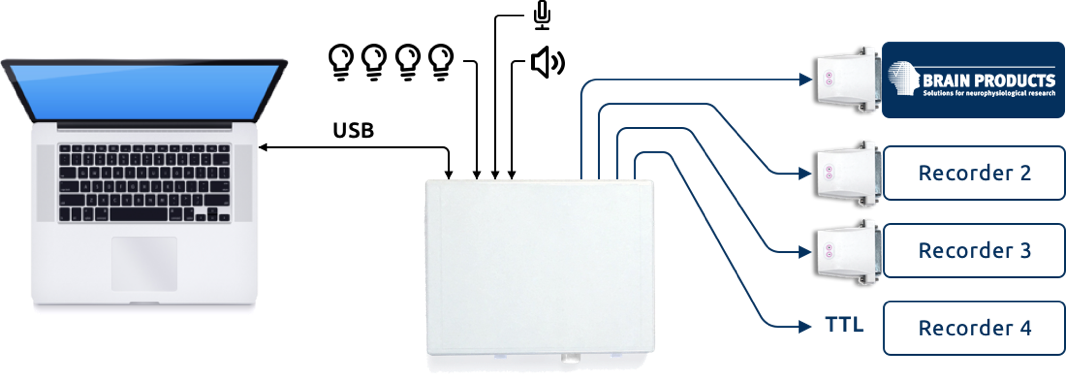

StimTracker Quad offers additional features:

The Quad model can detect the onset of a vocal response using any PC-compatible microphone and can handle more light sensors. It also supports an additional m‑pod output and provides raw TTL input and output.

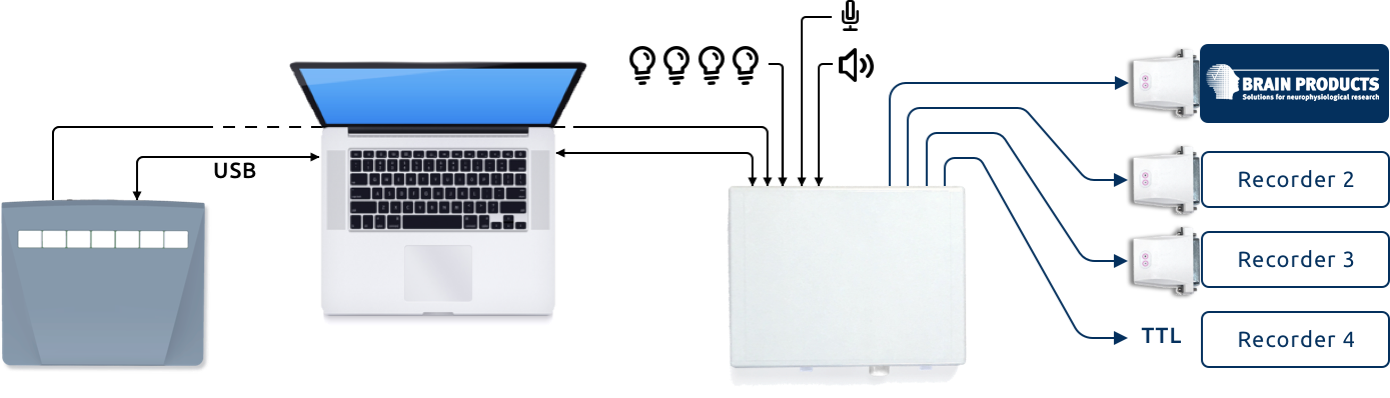

The Ultimate Bundle

You can go farther by adding a response pad. Keypress information is sent simultaneously via USB to the stimulus presentation computer running SuperLab (or E-Prime, Presentation, PsychoPy, etc.) and to StimTracker.

Event Markers in Recorder

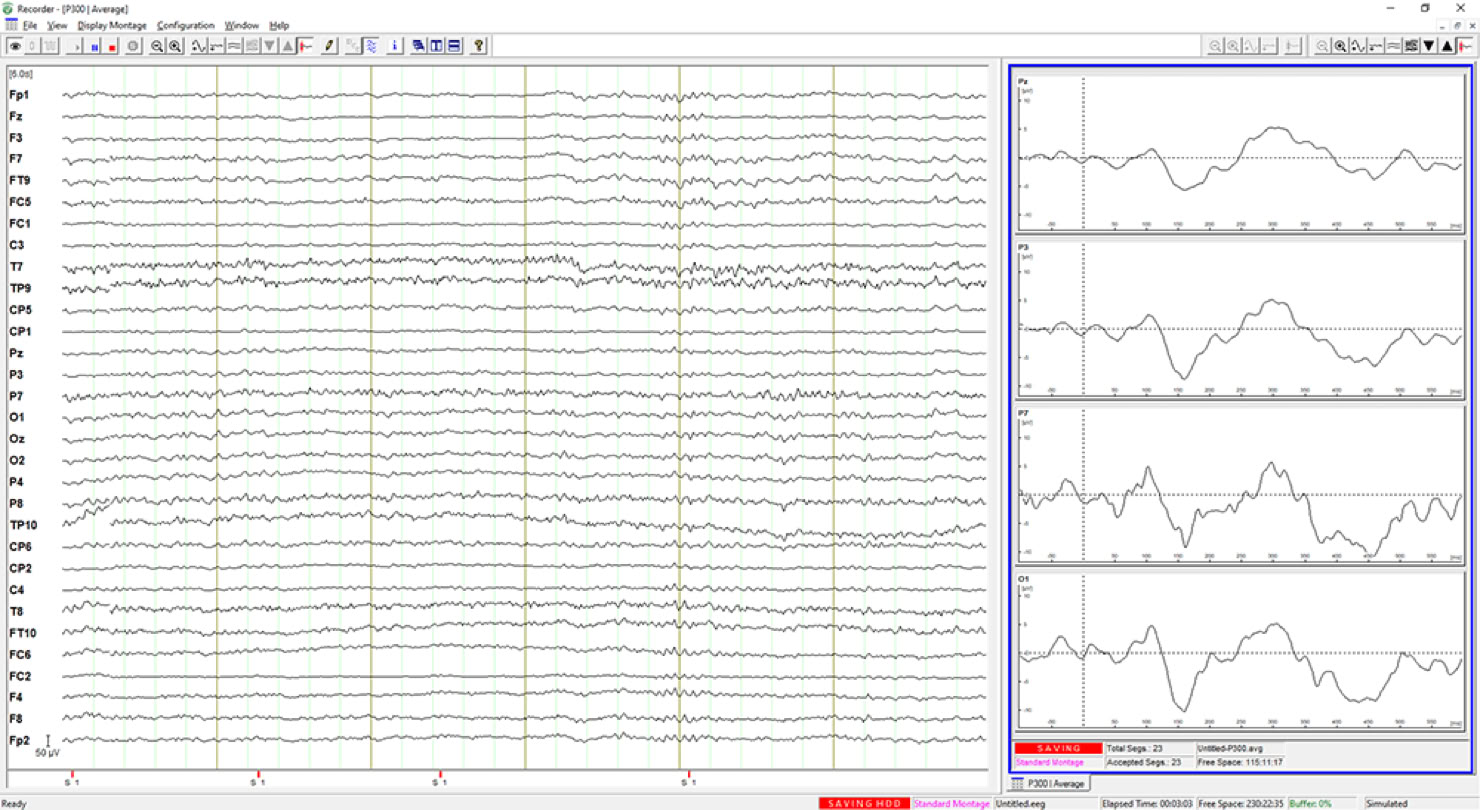

Events markers appear in BrainVision Recorder software:

We Can Assist You…

…in selecting the best solution or discussing any special requirements that your lab might have. Email us.

How to Order

For Brain Products’ actiCHamp systems:
On the StimTracker ordering page, select “m-pod for Brain Products actiCHamp”.

For Brain Products’ BrainAmp models, the USB 2 Adapter (also known as BUA) is required. On the StimTracker ordering page, select “m-pod for Brain Products DB26”.

StimTracker can also be ordered from one of Cedrus’ international distributors.
