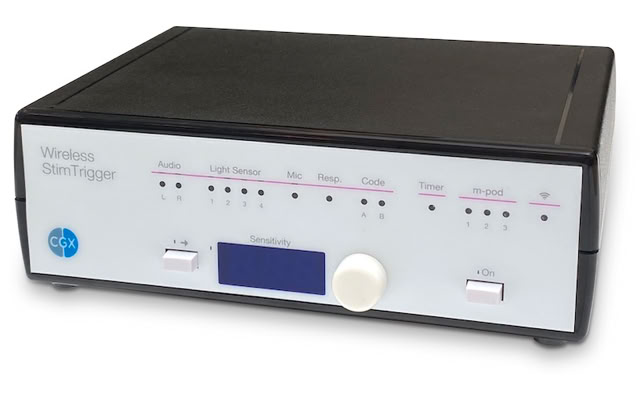

StimTrigger operates wirelessly. No hardware connection is required to CGX’s recorders.
StimTrigger gets all the signal mapping benefits that m-pod offers. This is because it features an additional, internal m-pod. Here are the defaults:
m-pod contains a powerful microprocessor that can reassign any input signal to any output line, and without any significant delay. It can also assign multiple signals to the same output line.
The tables above describe the factory default. If your experiment or lab setup requires different output, Cedrus provides a free utility for configuring your m-pod. After you use it, your configuration is saved to flash memory so that it’s remembered even after you power off StimTrigger.
Last Revision: May 19, 2020
Trigger Value
Bit 0
Bit 1
Bit 2
Bit 3
Bit 4
Bit 5
Bit 6
Bit 7
Bit 8
Bit 9
Bit 10
Bit 11
Bit 12
Bit 13
Bit 14
Bit 15
For
Light sensor 4
Light sensor 3
Light sensor 2
Voice key / mic
Any participant key press
Audio – left
Audio – right
Light sensor 1
USB bit 0
USB bit 1
USB bit 2
USB bit 3
USB bit 4
USB bit 5
USB bit 6
USB bit 7
