Cedrus manufactures a version of StimTracker that provides a second TTL output for Tobii TX300 eye trackers, with a matching SMB connector (earlier units used a BNC connector, see below). There are no delays between the output to the TX300 and the output to EEG.
The coax connector puts out a TTL signal when any one of the following events are detected:
– Light sensor 2
– Audio (either left or right channel)
– TTL Input connector (any of the six input lines)
– Microphone / voice key

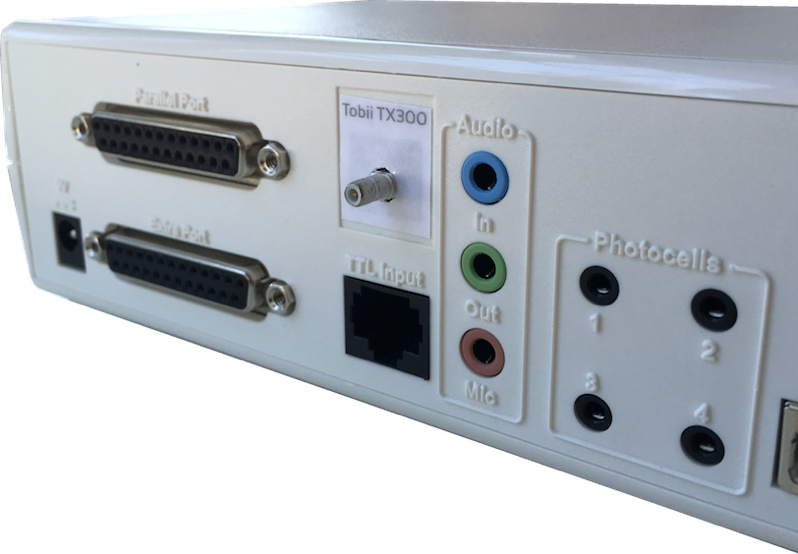

If the connector on the back of your StimTracker for TX300 unit looks bigger than the one in the photo above, then you have one of the early units that were produced. They used the bulkier BNC connector, but more importantly, provided output only for light sensor 2.
Last Revision: June 9, 2016
