Unfortunately, it is not possible to record the onset of StimTracker 1G events using Net Station version 5. You can record only the offsets; see this blog post. The newer StimTracker Duo and Quad models provide the necessary logic for Net Station 5 to record the onsets.
If you are using Net Station 4.x, please see this older support note.
Cedrus manufactures a StimTracker signal adapter board that makes it possible to interface with EGI’s Net Amps EEG amplifiers. The signal adapter comes with a DB9 cable that is ready to plug into the GES 200 and GES 250, using the Net Amps 200. On the GES 300 and later systems, an additional “Hypertronics-to-DB9” cable is needed. EGI installations usually have this cable already, but if your does not, you can buy one from EGI or Cedrus’ store.
Net Station 5 can only record the OFFSET of a StimTracker 1G signal; it cannot record the onset. For example, when using a light sensor, Net Station 5 can record when a stimulus has disappeared off the screen but not when it appeared.

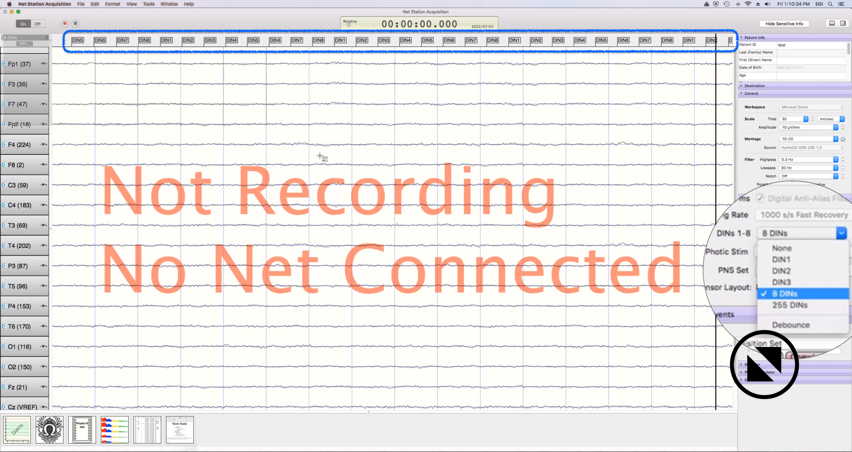

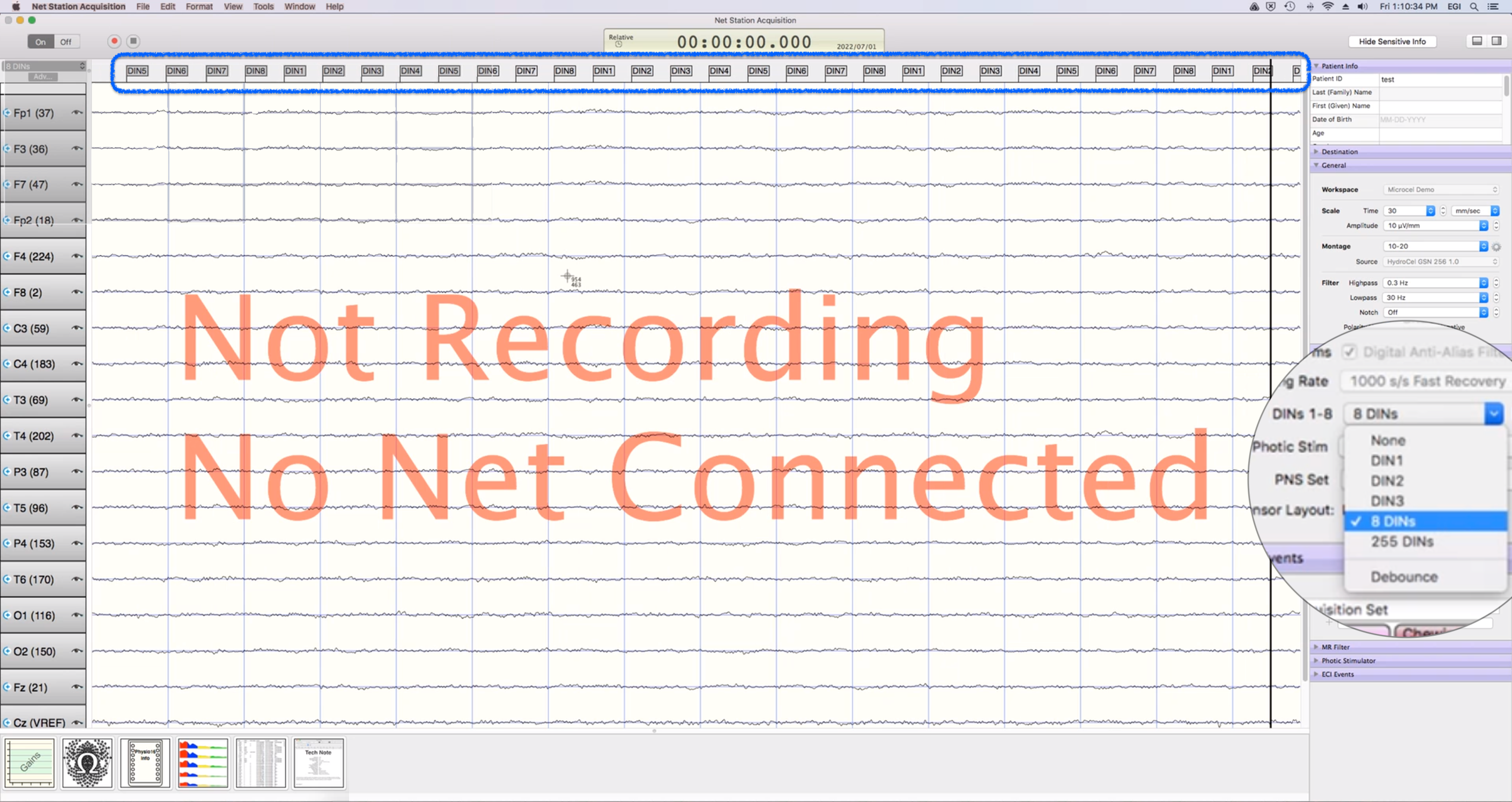

Setting up Net Station 5 is straightforward. Make sure that the setting “DINs 1-8” on the right side is set to “8 DINs”. In the screenshot below, in the upper part of the window, you can see event marker offsets (DINs) being received periodically.
Last Revision: Sep 13, 2022
StimTracker Signal
Trigger Value
Comments
Light sensor 1
DIN1
Light sensor 2
DIN2
TTL input
DIN3
StimTracker will send output to channel 3 when it detects input on any of the six TTL/digital input lines.
Audio L+R
DIN4
StimTracker will send output to channel 4 when the volume rises above the preset threshold on either the left audio channel or the right audio channel.
Microphone
DIN5
Event marker bit 0
DIN6
Event marker bit 1
DIN7
Event marker bit 2
DIN8
