Support Notes

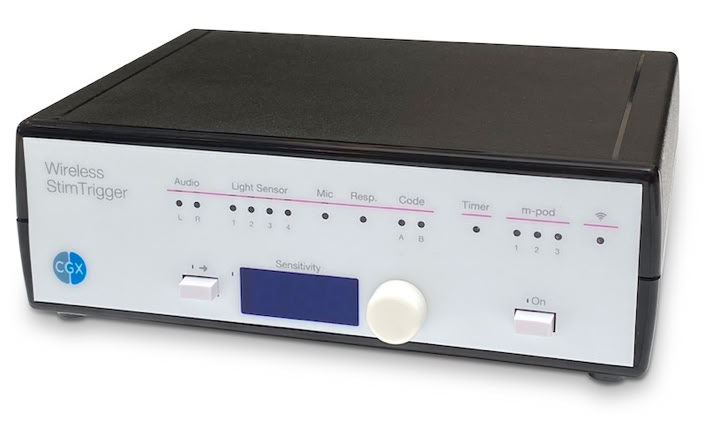

StimTrigger is the result of a joint development effort between Cedrus and CGX Systems. It retains all the features of StimTracker Quad and adds the following:

• 16-bit wireless transmission of triggers
• A built-in “m-pod 4”; see the default signal assignments

This fourth m-pod is fully independent; you can still add three external m-pods and use the “TTL Output” connector at the same time. In other words, StimTrigger can deliver triggers to five recording devices simultaneously.

All the StimTracker support notes also apply to StimTrigger, including the notes that are specific to the Quad model.

Software Support

For sending event markers via USB, StimTrigger is supported by all the software packages that support StimTracker, including SuperLab, Presentation, E-Prime, Inquisit, and the Cedrus Python and C++ open source libraries.

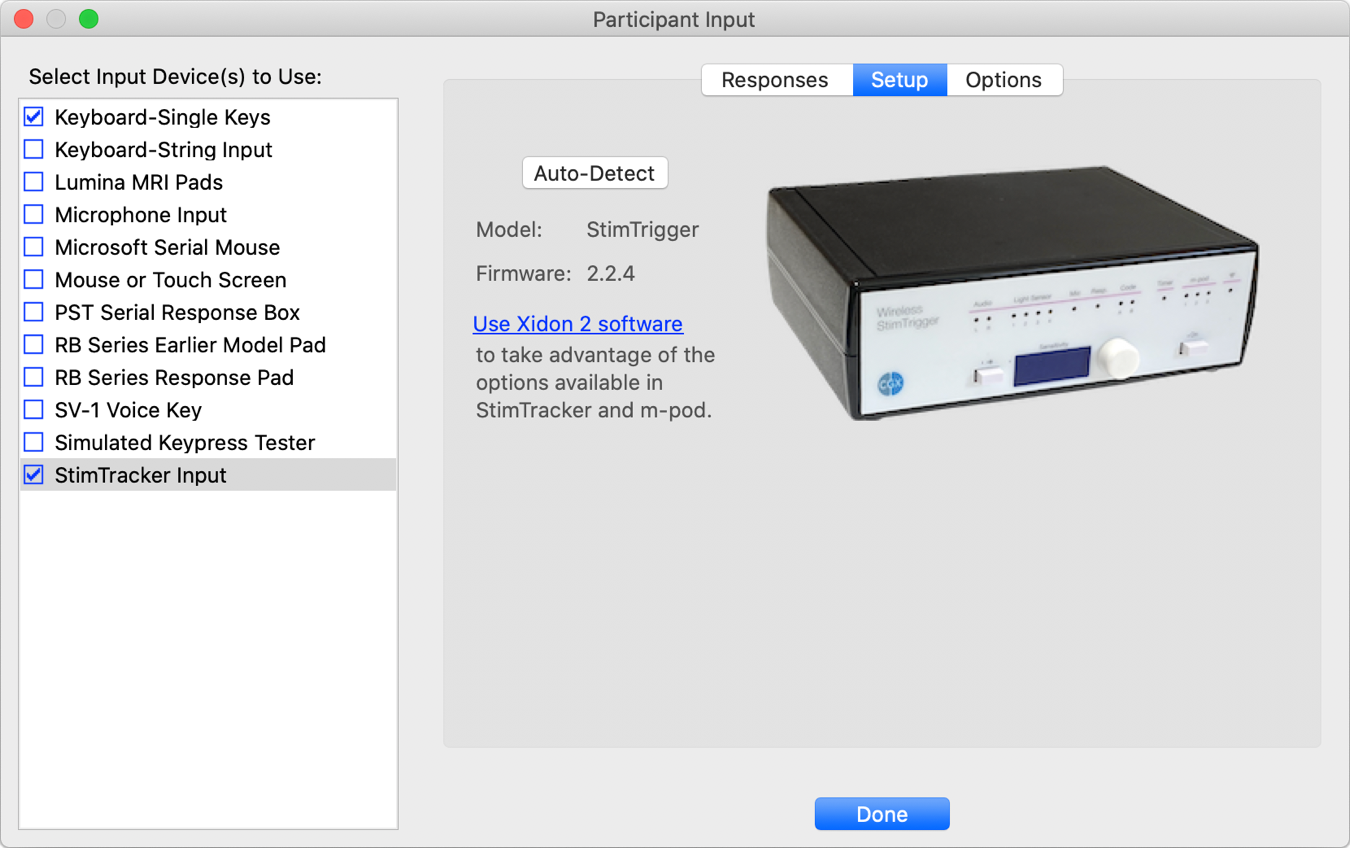

SuperLab 6 supports input from StimTrigger as well:

Back to StimTracker Support main page
Last Revision: May 19, 2020
